Digital Cross Connect

DynaFlex platform provides fully non-blocking cross-connect capabilities at 8K, 64K and Nx64K granularities.

The DB4/DB4X multiplexer units provides a low density cross-connect of up to 4xE1 interfaces, whilst the DXC provides a moderate sized cross-connect of up to 32xE1 interfaces.

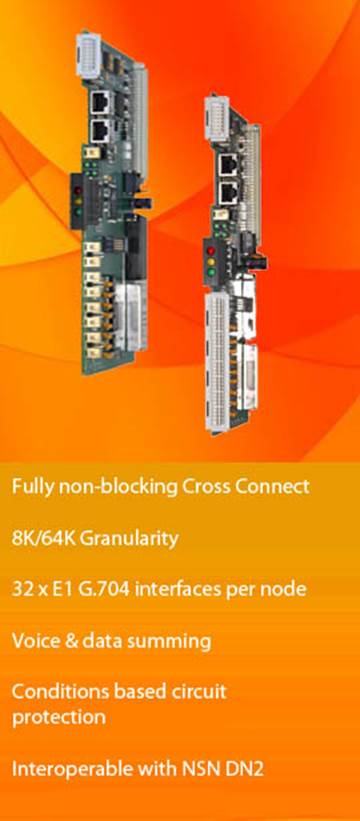

The DXC comprises of a set of pluggable cards (up to 8 cards per chassis) to support cross-connect capabilities of up to 32xE1 ports. Each DXC card supports 4xE1 interfaces and can co-exist with the DB4 Mux within the same chassis. The DXC supports a wide range of protected connection types including voice and data summing functions.

DynaFlex also offers cross-connection capabilities at the transport level. The DFS1/4 SDH transport card supports cross-connect for 63xE1 interfaces at VC-12 level. It also support cross-connections at VC-3 and VC-4 levels.

DynaFlex also offers Ethernet based transport cards carrying E1 and Ethernet, implemented using CES and Pseudo Wire technologies and operate in point to point, linear and ring topologies.
